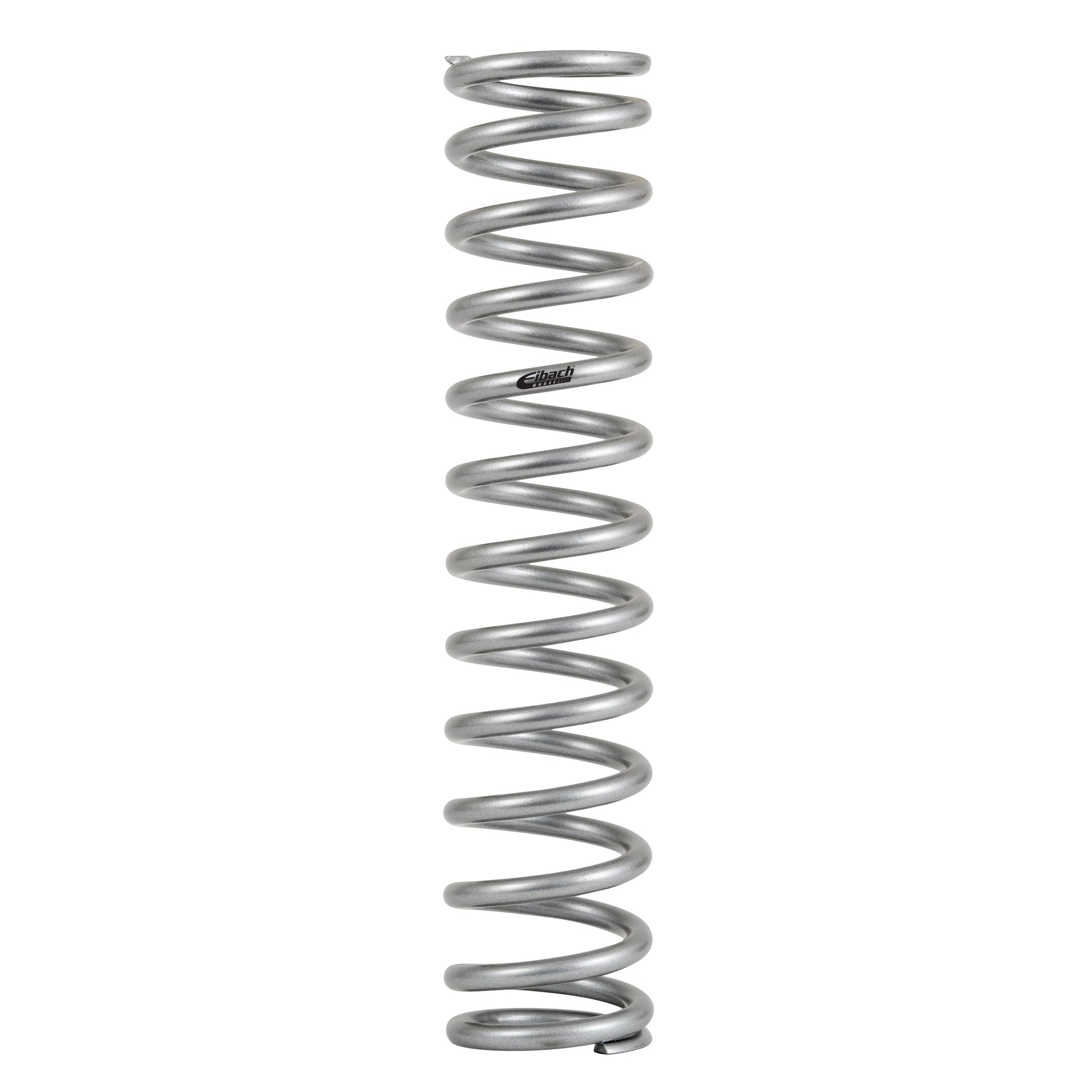

Eibach ERS (2200.375.0500S) 2200 Length 3.75" ID 0500S lbs Rate

Eibach ERS (2200.375.0500S) 2200 Length 3.75" ID 0500S lbs Rate

Regular price £185.13
Regular price £217.80 Sale price £185.13
Sale Sold out
Tax included. Shipping calculated at checkout.

No stock? Don't worry we can order in from the factory, usually taking 2-3 weeks or offer a quicker service of 1 week for £40.00 *Excludes USA produced springs*

Lowering / Raising amount

All Measurements are approximate and are based off of non-sport models.

For example, if you have an M-sport model, this amount will need be reduced off the amount we provide.

Spare Part Markings

Looking for replacement parts? These are the spare part markings included in your kit. Give us a call on 01604 212140 or email sales@eibachshop.co.uk

Axle Weights

Maximum permissible axle weights. (up to not past)

Eibach design their suspension to work with the above axle weights, you are looking up to and not past that figure. If you see multiple products listed for your vehicle and not sure which is the right one, checking the axle weights is a good place to start.

This also ensures that the lowering amounts are correct and the vehicle
handles as intended.

Part Number= 2200.375.0500S

PG= ERS

Length= 22 (inch) / 559 (mm)

Diameter= 3.75 I.D. (inch) / 95 I.D. (mm)500 (lbs/inch)

Rate= 8.94 (KG/mm) 88 (N/mm)

Block Height= 10.07 (inch) / 256

Travel= 11.93 (inch) / 303 (mm)

Block Load= 5964 (lbs) / 26529 (N))

Weight= 24.07 (lbs) / 10.92 (KGS)

Eibach Race Spring System

  • Over 1,300 single components – main and tender springs – metric and imperial, various auxiliary race suspension accessories, ready and in stock on 5 continents
  • Comprehensive Program of single components
  • Single Main Springs with highest rate-linearity and lowest rate tolerance
  • Progressive Characteristics via set-up of different springs serially – double or even triple spring combinations
  • Extreme Low Weights achieved through Super Hi-Ten materials and manufacturing technology
  • Smallest Solid heights, maximized spring travels and higher maximum loads
  • Spring Surface Stabilization through specialized shot peening
  • Every ERS Spring preset to block
  • Block and Sag Resistant
  • Smallest Tolerances and precise plane parallelism of spring ends
  • High Dynamic Durability – under Motorsport conditions
  • High quality corrosion protection by phosphating and epoxy coating
  • Springs Printed with part-number (speaking code = rate and dimensions)

Materials

Eibach Pro-Spacer

Pro-Spacer Material is an Aluminium Alloy of grade ENAW-AlCu4PbMgMn which conforms to DIN EN 755-2: 2008 Aluminium and aluminium alloys. Extruded rod/bar, tube and profiles. These have a hardness rating of Rm = 370 N/mm2. Steel inserts for System 7 spacers are Steel Alloy of grade 42CrMo4 with a mechanical strength of grade 10.9. These are finished with an Anodised coating.

Eibach Anti-Roll Bars

Hollow Bars – Grade and material to specification BTR 120 EN10305-1 (Steel Alloy - 16CrMnMoV8-7-5-2). These are Zinc Phosphate and then Powder coated (Polyester Resin).

Solid Bars – Grade and material to Specification EN10089 (Steel Alloy – 51CrV4). These are Zinc Phosphate and then Powder coated (Polyester Resin)

ARB Bushes

Polyurethane to a shore rating of between 77 and 83 dependent upon application.

Eibach Pro-Kit and Sportline Springs

Pro - Kit and Sportline Springs, and some ERS - Grade and material to specification ED-10270-2 (Steel Alloy FD SiCr). These are Zinc Phosphate and then Powder coated (Polyester Resin).

Most ERS and specialist spring applications requiring higher tensile strength

Grade and material to specification ED-10270-2 (Steel Alloy EF2000 SiCrV).

Pro Spacer Bolts, Studs and Nuts

Steel Alloy of grade 42CrMo4 with a mechanical strength of grade 10.9.





Shipping & Returns

Shipping

All in stock products will be despatched out the same day if ordered before 1pm.

If the product is not in UK stock then lead time depends on stock location, if in stock within Germany then it will come over on the UK container which arrives every 2-3 weeks, in some cases express shipping can be offered at the price of £40 this then takes around 3-5 working days.

If the product is not in stock throughout the UK or Germany then the lead time will vary which we will get for you upon enquiry (Please call on 01604 212140 or email sales@eibachshop.co.uk).

USA manufactured springs that are not held in UK stock can be brought over with an expected time scale of 6-8 weeks.

If you are uncertain on any of the shipping times, then please do get in contact with us.

Returns

For the full returns policy please check out our Return and Refund Policy HERE

Installation Care

Installation Care

We have put together a few notes for you to consider.

Lowering & height amounts

All Lowering amounts are provided from a standard height car, if you have a lowered vehicle or sports model then the lowering amount may differ.

Alignment

Wheel adjustment - after completion of the spring/suspension installation, checking the wheel adjustment is required. If you are setting up the car for any specific use, for example racing for a fast road set up then please contact a tuner for best advice, however Eibach would reccomend putting all alignment back to OE specification.

Which damper

Eibach Pro-Kit springs are designed to work with OE shock absorbers but do check the damper upon installation of the springs for any signs of wear and should be changed when needed.

The installation of sport dampers can improve your suspension set up with Eibach's lowering springs for example example Bilstein B8
